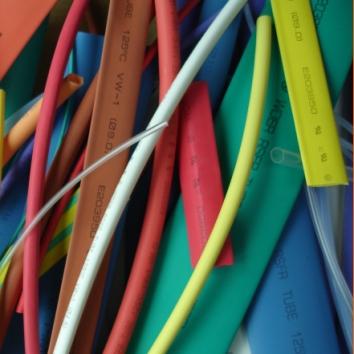

| Heat shrinkable tubings |
|
·Function: 1. wire coat and insulation.
2. make the joint of terminal block and wire insulated.
3. divide the colors.
4. water-proof.
5. protection and insulation of insistors and electrical capacitors.
·Standard color : black, white, red, blue, yellow, green, brown, grey, orange
and purple.
| ITEM.NO. |
AS SUPPLIED |
AFTER SHRINKANG |
PACKING(M/ROLL) |
| I.D(mm) |
THCKNESS |
I.D(mm) |
THICKNESS |
| DRS-1 |
1.0 |
0.2±0.05 |
0.5 |
0.4±0.05 |
400 |
| DRS-1.5 |
1.5 |
0.2±0.05 |
0.75 |
0.4±0.05 |
300 |
| DRS-2 |
2.0 |
0.25±0.05 |
1.0 |
0.45±0.1 |
200 |
| DRS-2.5 |
2.5 |
0.25±0.05 |
1.25 |
0.45±0.1 |
| DRS-3 |
3.0 |
0.25±0.05 |
1.5 |
0.45±0.1 |
| DRS-3.5 |
3.5 |
0.25±0.05 |
1.75 |
0.45±0.1 |
100 |
| DRS-4 |
4.0 |
0.25±0.05 |
2.0 |
0.45±0.1 |
| DRS-5 |
5.0 |
0.35±0.05 |
2.5 |
0.55±0.1 |
| DRS-6 |
6.0 |
0.35±0.05 |
3.0 |
0.55±0.1 |
| DRS-7 |
7.0 |
0.35±0.05 |
3.5 |
0.55±0.1 |
| DRS-8 |
8.0 |
0.35±0.05 |
4.0 |
0.55±0.1 |
| DRS-9 |
9.0 |
0.35±0.05 |
4.5 |
0.55±0.1 |
| DRS-10 |
10.0 |
0.35±0.05 |
5.0 |
0.60±0.1 |
| DRS-11 |
11.0 |
0.35±0.05 |
5.5 |
0.60±0.1 |
| DRS-12 |
12.0 |
0.35±0.1 |
6.0 |
0.70±0.1 |
| DRS-13 |
13.0 |
0.35±0.1 |
6.5 |
0.70±0.1 |
| DRS-14 |
14.0 |
0.35±0.1 |
7.0 |
0.70±0.1 |
| DRS-15 |
15.0 |
0.35±0.1 |
7.5 |
0.70±0.1 |
| DRS-16 |
16.0 |
0.35±0.1 |
8.0 |
0.70±0.1 |
| DRS-18 |
18.0 |
0.4±0.1 |
9.0 |
0.80±0.1 |
50 |
| DRS-20 |
20.0 |
0.5±0.1 |
10.0 |
0.90±0.1 |
| DRS-22 |
22.0 |
0.5±0.1 |
11.0 |
0.90±0.1 |
| DRS-25 |
25.0 |
0.5±0.1 |
12.5 |
0.90±0.1 |
| DRS-28 |
28.0 |
0.5±0.1 |
14.0 |
0.90±0.1 |
25 |
| DRS-30 |
30.0 |
0.5±0.1 |
15.0 |
1.00±0.2 |
| DRS-35 |
35.0 |
0.5±0.1 |
17.5 |
1.00±0.2 |
| DRS-40 |
40.0 |
0.5±0.1 |
20.0 |
1.00±0.2 |
| DRS-50 |
50.0 |
0.5±0.1 |
25.0 |
1.00±0.2 |
| DRS-60 |
60.0 |
0.6±0.1 |
30.0 |
1.20±0.2 |
| DRS-70 |
70.0 |
0.6±0.1 |
35.0 |
1.20±0.2 |
| DRS-80 |
80.0 |
0.6±0.1 |
40.0 |
1.20±0.2 |
| DRS-90 |
90.0 |
0.6±0.1 |
45.0 |
1.30±0.2 |
| DRS-100 |
100.0 |
0.7±0.1 |
50.0 |
1.30±0.2 |
| DRS-120 |
120.0 |
0.7±0.1 |
60.0 |
1.30±0.2 |
| DRS-150 |
150.0 |
0.8±0.1 |
75.0 |
1.60±0.2 | | |
| |
| | |
